Now- a- days people are very busy in their works. So they try to do many works in the same time specially during the cooking. During rush period many times dishes goes waste and also a lot of energy consumed. To overcome above problem, we are designing a system which is named as ‘COOKING MONITOR’. This system will monitor the cooking equipment like pressure cooker and LPG cylinder. By using this system we can control wastage of food and energy. We can decide whistle of pressure cooker and after blowing that fixed whistles regulator of gas cylinder would be automatically off.

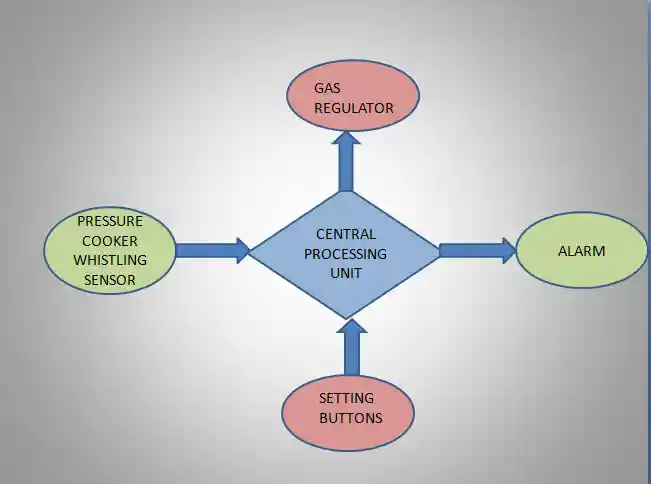

 Block Diagram



TECHNICAL DETAILS:

1. MICROCONTROLLER: It is a processor which takes input and after processing it gives output.

2. SETTING BUTTONS: These buttons used to set that after how much whistles gas regulator get off.

3. PRESSURE COOKER WHISTLING SENSOR: This sensor is used to detect whistles.

4. ALARM: This alarm is used to indicate the food is cooked and also to alert us in case of risk.

5. GAS REGULATOR: Gas regulator is use to regulate output  of LPG at the time of cooking food.



ADVANTAGE AND APPLICATION:

1. No wastage of energy
2. Safe food
3. It can be used in boiling milk and baking oven.
