How to change Track width in EasyEDA pcb design software

EasyEDA is a cloud based pcb (printed circuit board) interface. Best thing of easyEDA design tool is that it has large number of parts library. we can also used and share design of other user if they are there design. we can also directly order our design for pcb manufacturer JLC-PCB company. They design even if we order 2 or 3pcs of pcb. You can find more detail on its website : https://easyeda.com/

List of headings (Hide)

  1. How to change Track width in EasyEDA pcb design software
  2. Track width change issue
How to change Track width in EasyEDA pcb design software
PCB design using easyEDA


Track width change issue

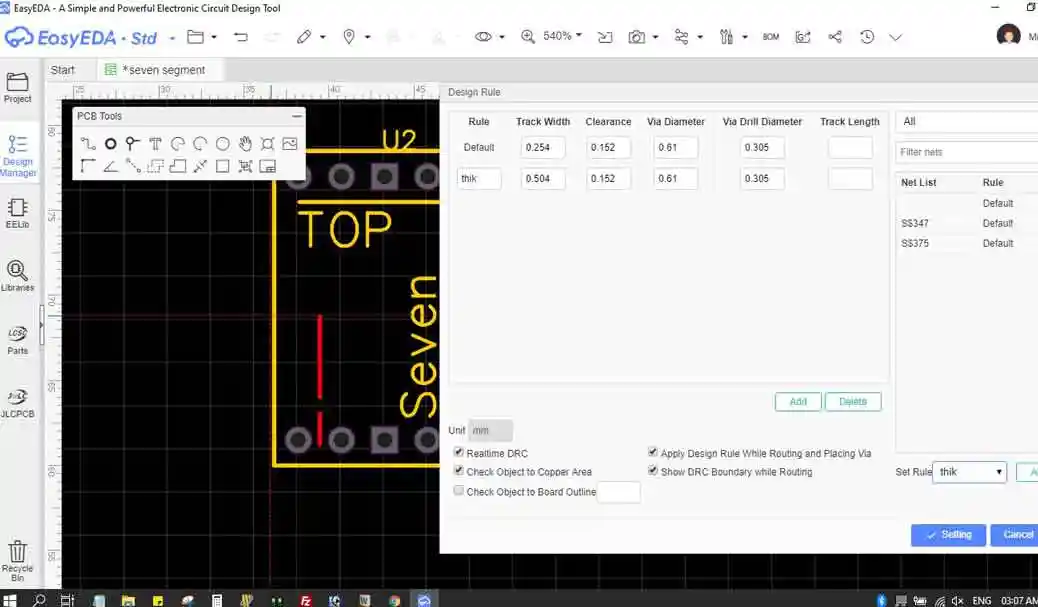

We can change width of the track by going through following steps

  1. Go to Toos option
  2. click on 'Decign rule
  3. here, you have two option, firstly, you can edit the track width on 'default' rule. Secondly, you can create your own customize design rule by clicking on 'add' and then putting value of your design rule
  4. Then select the design rule from 'set rule' drop-down menu and click on 'apply' and then click on 'setting'
  5. Now, your tracking width will be change to your selected design rule

If any query, please feel free to ask me in below comment field.
