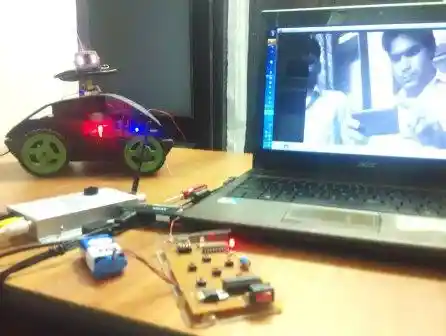

WAR FIELD ROBOT WITH WIRELESS NIGHT VISION CAMERA (RF CONTROLLED) is land rover robot which is controlled remotely using RF (radio frequency) module. A wireless night vision camera is mounted on the top of the robot and this camera is also controlled by RF remote. It can be rotate to any direction (clockwise and anti-clockwise) to any angle (more than 360°). Robot has many driving options, it can be move forward and backward, its can turn left and right direction. To control all this activities, 8051 family microcontroller is used. Motor driver is used to drive and control different DC motors.

CPU: Central processing unit is the brain of  RF BASED ROBOT. It processes all inputs and gives corresponding outputs.

MOTOR :

We are using DC gear motors of about 1000rpm. These motor are use to rotate wheels and also help in changing direction robot’s motion.

RADIO FREQUENCY(RF)  TRANSMITTER:

It uses RF frequency to transmit controlling signal from remote control to the ROBOT.

RADIO FREQUENCY(RF)  RECEIVER:

It uses RF frequency to receive controlling signal from remote control to the ROBOT.

SWITCHES:

Switches are used to control speed and direction of all motors. It is mounted on RF transmitter and are use remotely.

1. It uses latest technologies.
2. Wireless night vision camera is used for night time operation.
3. &n bsp;It uses RF frequency transmitter and receiver which have long distance range.
4. No need of sight of sight.
5. gear motors are used which has highly grab while running on incline path.



FURTHER MODIFICATION

In future, it can be used for domestic robots. We can also improve its functions by using GPS navigation system.
