Working of electromagnetic electric bell

How simple is the making of electromanetic electric bell. Electromagnetic electric bell is made by the principle of electromagnetic inducton. Knowing of principle make it very easy to design electric door bell (ting-tong) that we use at home.

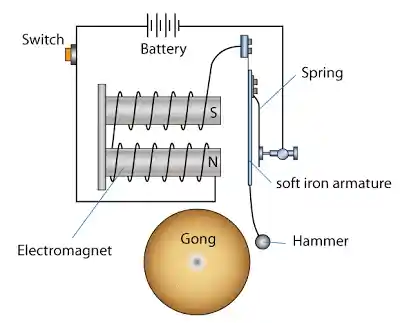

Working of electromagnetic electric bell
Working-of-electromagnetic-electric-bell2016-07-28_12_34_18


What is principle of electromagnetic induction

Principle of electromagnetic induction states that when electric current is flow through a wire, it produce electromagnetic field which is behave same as magnet.

Working of Electromagnetic Electrical Door Bell

         When the switch is pushed 'on', current flows through the coil, and the coil becomes an electromagnet. Consequently, it attracts the metal strip and moves the clanger to hit the bell. However, it also breaks the circuit, which causes the coil to no longer be a magnet, and causes the clanger to move back. The circuit will then be reestablished, and the bell will keep ringing until the switch is released.

        An electric bell essentially consists of an electro-magnet and a vibrating armature piece that oscillates in front of it. If a current enters the terminal A, it will be conducted through the coils D of the electro-magnet, which has iron cores, and pass out through the metal of the armature, the contact screw, g, and the terminal B. Such a current will, of course, cause the electromagnet to draw the armature down on to its terminate. The armature is attached by a flexible steel spring to the framework to make this movement possible. In the act of drawing down the armature, however, the contact of the screw with the armature spring is broken, and since this contact forms part of the electric circuit, the current will cease to magnetize the electro-magnet; the armature will, therefore, no longer be attracted and will spring back by virtue of the steel spring, and contact between it and the screw, g, will be restored. Consequently, the same operation will be repeated. Motion takes place very rapidly to and fro, and is communicated to a light hammer, d, that strikes the bell, b, and produces a continuous and loud ringing sound. The whole apparatus forms a simple method of drawing attention from a distance, and can always be relied on to work.

What is principle of electromagnetic induction
What-is-principle-of-electromagnetic-induction2016-07-28_13_11_39


Share this page with your friends
share via Whatsapp

Posted By :
Mahesh Nigam
(Scientist)
2019-09-27 17:13
See Author's other Published Topics

Airtel cheating ther customers by incomplete description of recharge pack of Big companies like Airtel, also cheating their customers by providing incomplete or confusing description of their recharge plans
Big companies like Airtel, also cheating their customers by providing incomplete or confusing description of their recharge plans
साहस और धैर्य का प्रतिक कारगिल विजय दिवस  of साहस और धैर्य का प्रतिक कारगिल विजय दिवस
साहस और धैर्य का प्रतिक कारगिल विजय दिवस
Vaisakhi  of Vaisakhi
Vaisakhi
3 मार्च - विश्व वन्यजीव दिवस of 3 मार्च - विश्व वन्यजीव दिवस
3 मार्च - विश्व वन्यजीव दिवस
1 मार्च- विश्व प्रशंसा दिवस of 1 मार्च- विश्व प्रशंसा दिवस
1 मार्च- विश्व प्रशंसा दिवस
1 मार्च- विश्व नागरिक सुरक्षा दिवस of 1 मार्च- विश्व नागरिक सुरक्षा दिवस
1 मार्च- विश्व नागरिक सुरक्षा दिवस
1 मार्च - शून्य भेदभाव दिवस of 1 march शून्य भेदभाव दिवस
1 march शून्य भेदभाव दिवस
करती रही of पूरा नही बस थोड़ा सा ही समझा होता ....
पूरा नही बस थोड़ा सा ही समझा होता ....
वैलेंटाइन of वैलेंटाइन डे मनाने के पीछे एक रोचक तथ्य व 7 से 14 तक वैलेंटाइन सेलिब्रेट करने की सूची
वैलेंटाइन डे मनाने के पीछे एक रोचक तथ्य व 7 से 14 तक वैलेंटाइन सेलिब्रेट करने की सूची
National Test Agency of UGC NET December 2023 results and download its subject wise cut-off
UGC NET December 2023 results and download its subject wise cut-off
परीक्षा पे चर्चा  of परीक्षा पे चर्चा युवाओं के लिए तनाव मुक्त माहौल बनाने के लिए प्रधान मंत्री नरेंद्र मोदी के नेतृत्व में बड़े आंदोलन - 'एग्जाम वॉरियर्स' का हिस्सा है।
परीक्षा पे चर्चा युवाओं के लिए तनाव मुक्त माहौल बनाने के लिए प्रधान मंत्री नरेंद्र मोदी के नेतृत्व में बड़े आंदोलन - 'एग्जाम वॉरियर्स' का हिस्सा है।

Peoples

Comments...

Mahesh Nigam(Scientist):

Electromagnetic Induction is the main principle of converting electrical energy into mechanical energy.

Reply 17:13 2019-09-27
